Exhaust Gas Monitoring System

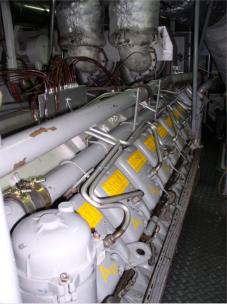

META-Automation- manufactures Exhaus Gas Monitoring System of Type SMK-9000 for detailled Exhaust Gas Monitoring of In-Line Engines. System Description : The System monitors the exhaust Gas Temperature of each Cylinder of the Engine, calculates and monitors the Deviations from the avarage Value of each Bank of Cylinders and Temperatures behind or before the Turbo-Charger. In the Event whereas a Maximum Temperature is exceeded, the System produces an Alarm. The Alarm is a dedicated Alarm for each Cylinder, Average or Turbo and is showing via an associated LED , flashing Display and audible Alarm (Horn). The Alarm can be acknowledged via Buttons at the Front of the System Enclosure or from external Buttons in remote Positions. The System Sensor are insulated Thermocouples of Type K (NiCr-Ni) or J (Fe-CuNi) for exhaust Temperatures up to 1200 oC and beyond. A Reference Junction Temperature-Sensor (Pt100) compensates for the accurate Temperature Calculation. Each Temperature Channel is monitored for Sensor Failure with Alarm Annunciation and all Sensor Wires are terminated in a common Junction Box where also the Reference Thermo-Sensor is installed providing so the necessary Correction. On Vessels Demand a Temperature or Alarm Recording can be combined with Printing Devices for Failure Tracing and Maintenance. Technical Data of the System : > Power Supply 24 Vdc (18-32 Vdc) > Power Consumption : < 0.5 A > Operating Temperature : up to 55 oC > Protection Class (Enclosure) : IP 54 > System is Manufacturer-neutral, for all Types of Engines EXHAUST GAS MONITORING SΥSTEM - OVERVIEW EXHAUST GAS MONITORING SΥSTEM - ELECTRICAL DRAWING
